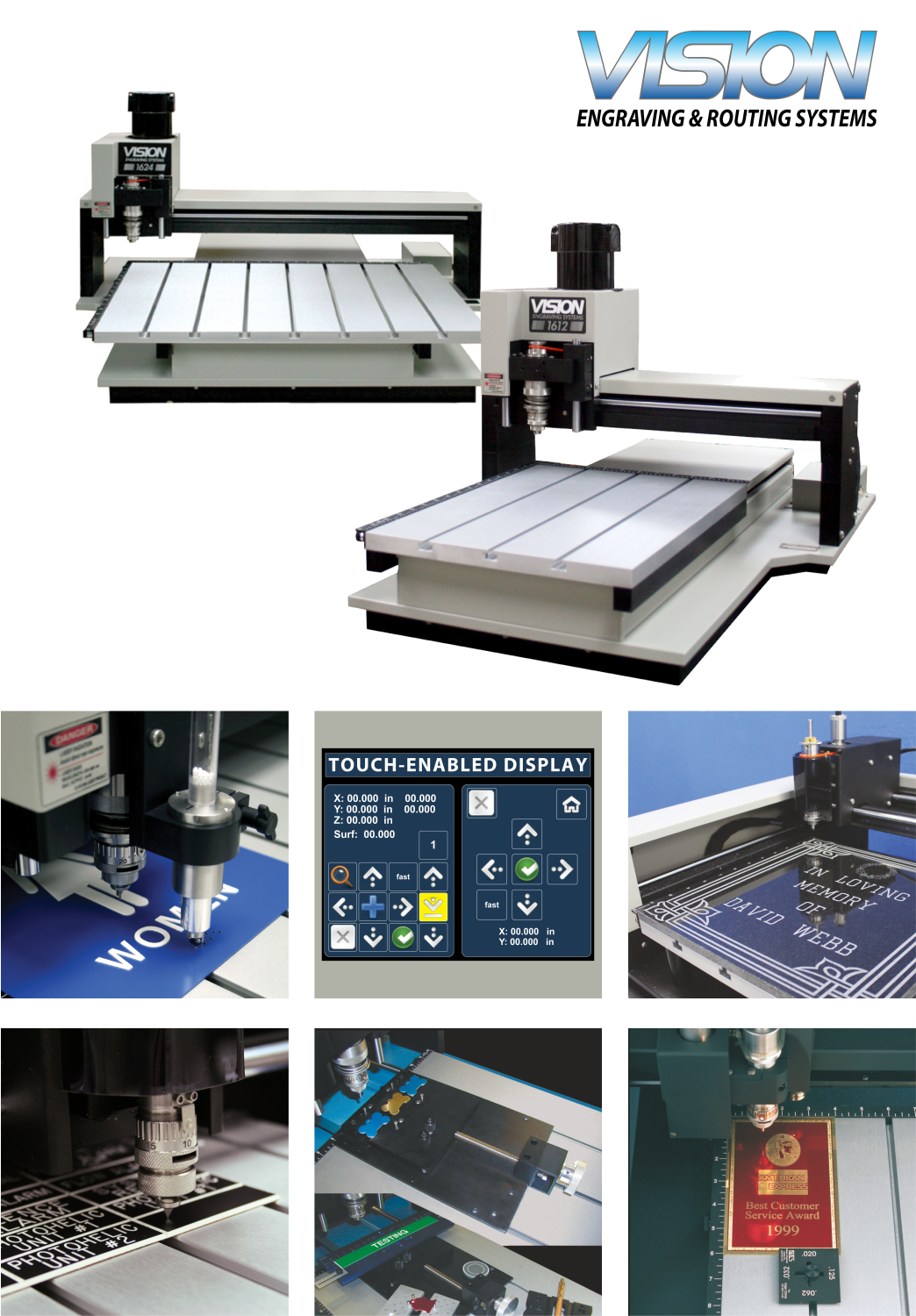

Vision 16 Series Engravers - 1612 Pro S5 & 1624 Pro S5

The 1612 & 1624 Pro Engravers is ideal for light to heavy duty applications in a medium size engraving area.

1612: 16” x 12” (406mm x 305 mm)

1624: 16” x 24” (406mm x 610 mm)

This wood, plastic and metal engraver has set the precedent for quality in the industry and is designed for professional and industrial marking applications. In addition to trophies, plaques and gift items, the extremely rigid design allows this table to be used for a variety of applications such as notary seals, tool & die work, tags and plates, deep metal cutting and ADA compliant Braille signage.


Click the links below to find out more about the Vision 1612 & 1624 specifications

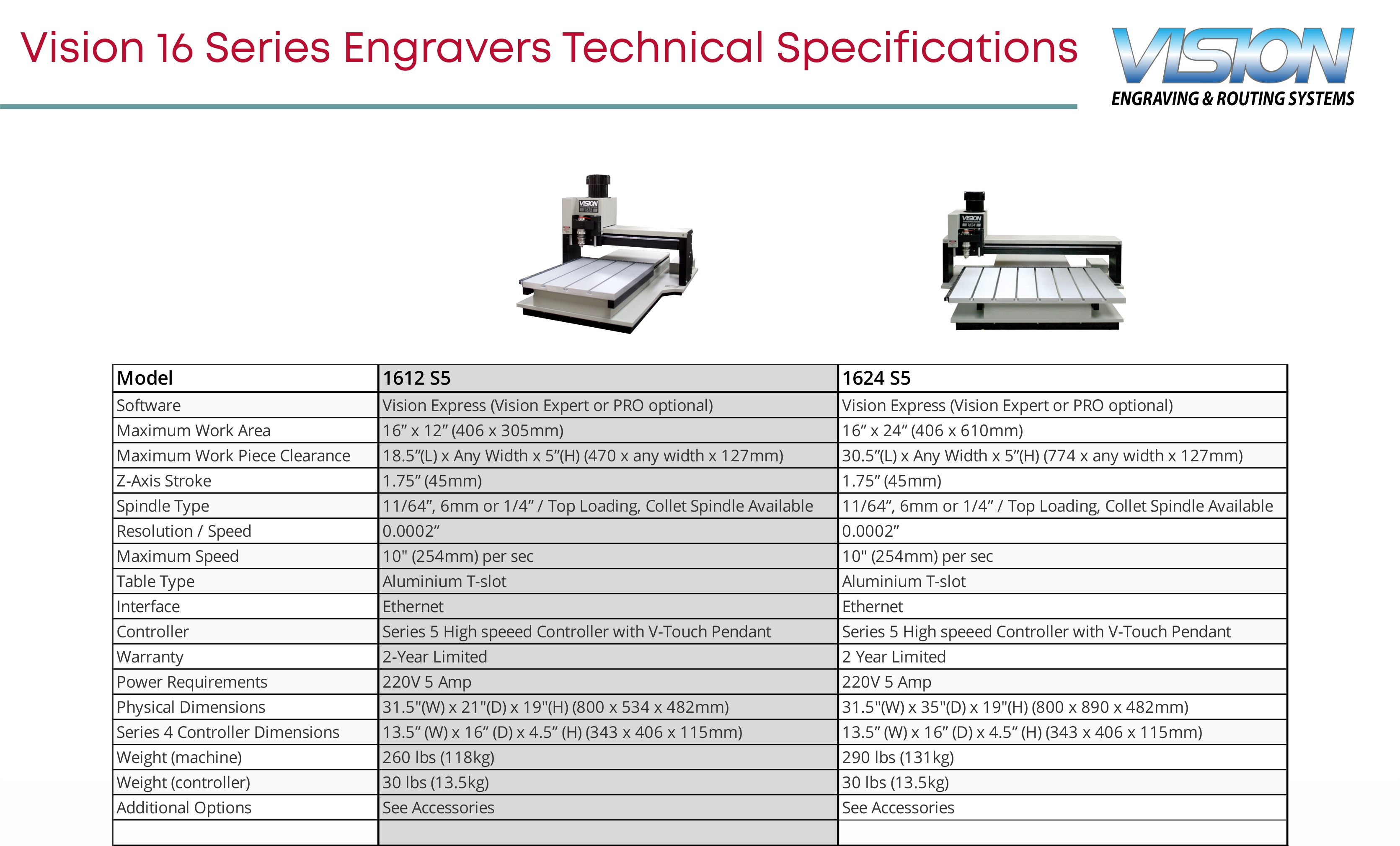

Vision 1612 & 1624 Specifications

Vision Engraver Application Chart

Vision Engraver Brochure

Vision 16 series TOUR

Check out the video below to get a full tour of the Vision 16 series and all it has to offer.


Check out some of the most impressive features of the Vision 16 engraver series below.

11/64” or 1/4” top-loading spindle (collet optional)

Series 5 controller and hand-held pendant

Engraves items up to 1.875” (48mm) thick

Red Laser Pointer for easy job set-up

Quick Lock Vice for holding materials in place

Vac chip Removal

Optional Automatic Raster™ Braille Inserter tool

Optional high-speed NSK Spindle

Unist Misting System for deep metal engraving
